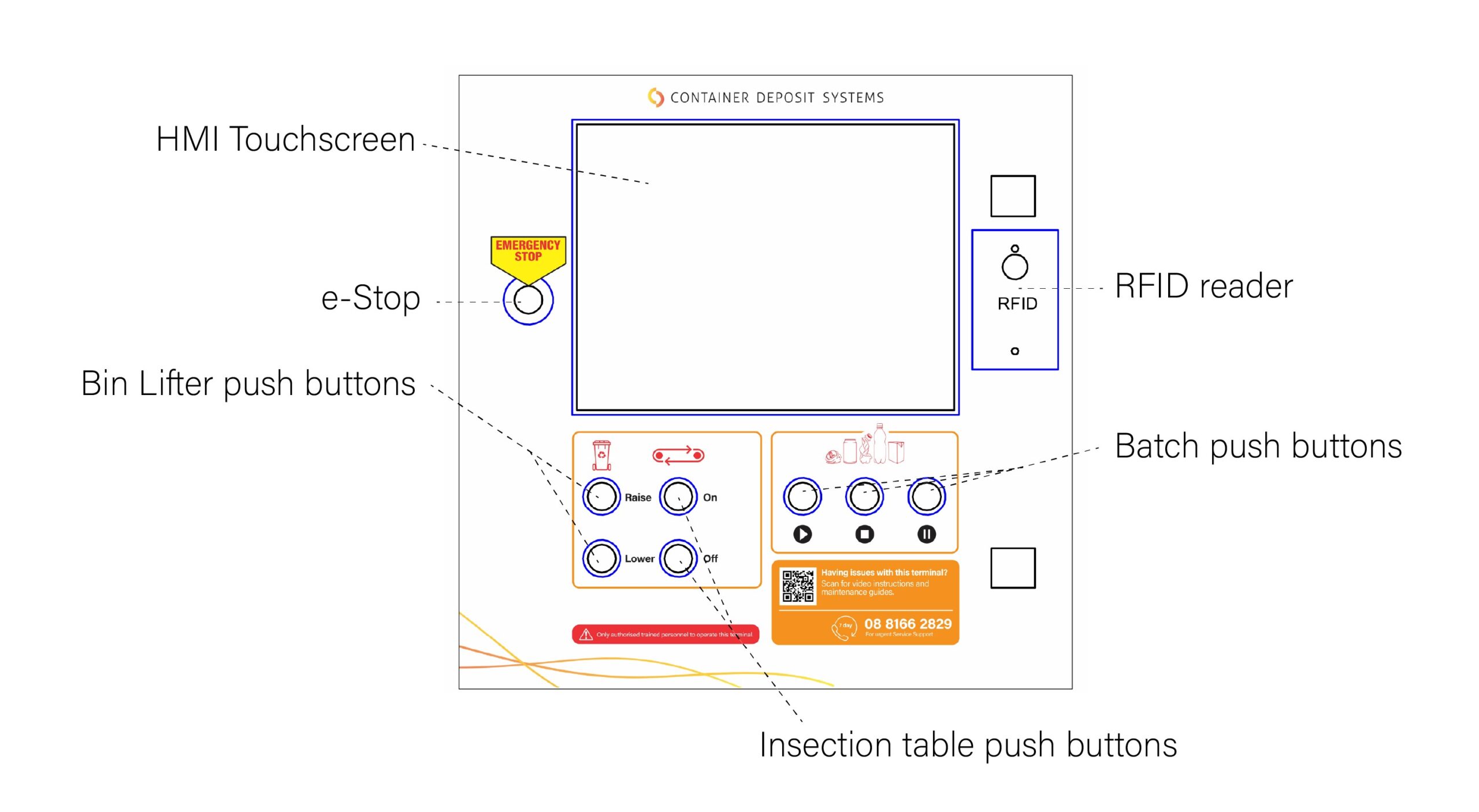

The Control Panel
The Control Panel houses the electronic controls, printer and communication modules. Located in arms reach on the inspection table the operator has control of the whole BRT from this point.
Touch Screen (Human Machine Interface (HMI)
The touch screen displays the status on the BRT. The buttons on the screen allow the operator to navigate through a variety of modes to simplify the use and maintenance of the BRT as explained throughout this manual. The main touch screen is located in front of the inspection table, with an additional touch screen at the Bin Lifter if this option is installed.
Start, Finish and Pause Buttons
The ‘START’ ‘FINISH’ and ‘PAUSE’ buttons are used to control each batch. Following the prompts on the Touch Screen to “swipe RFID”. • A batch begins when the ‘START’ button is pressed and will finish when the ‘FINISH’ button is pressed. • ‘PAUSE’ will pause a batch stopping the lanes but holding the current count. • To resume a batch, swipe the RFID card and press ‘START’.
